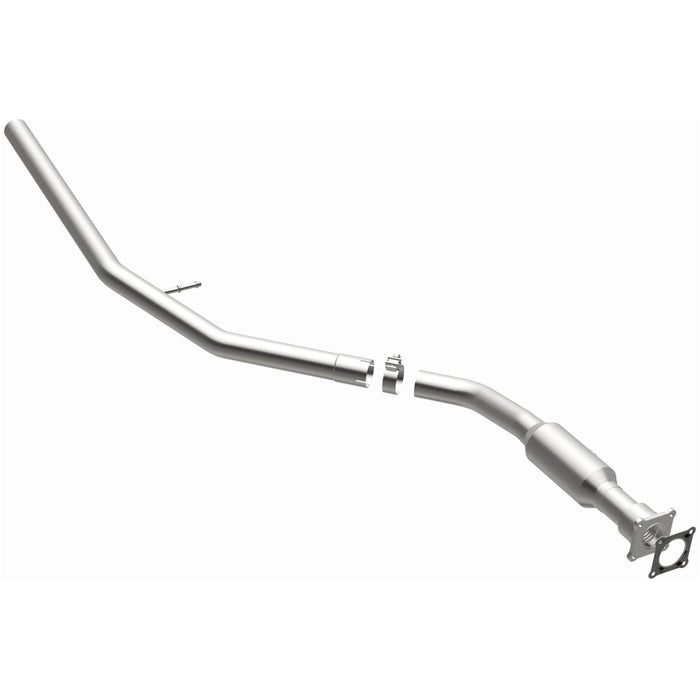

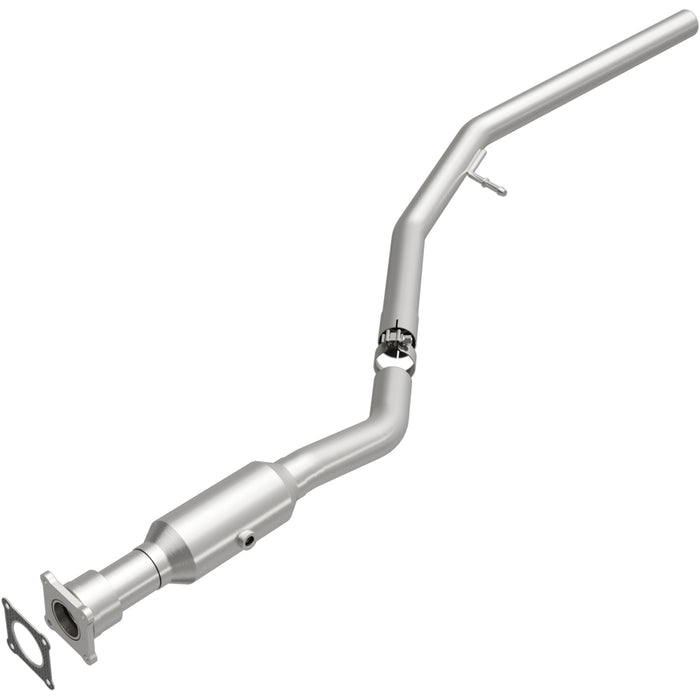

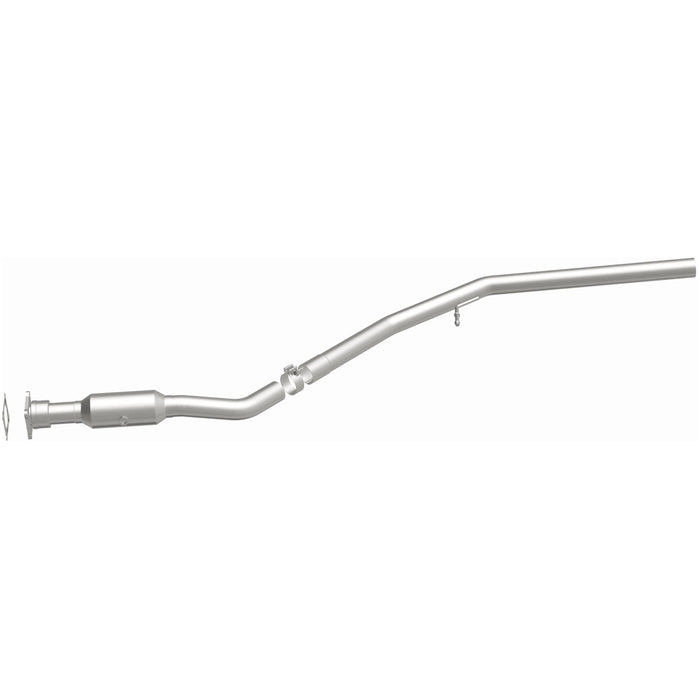

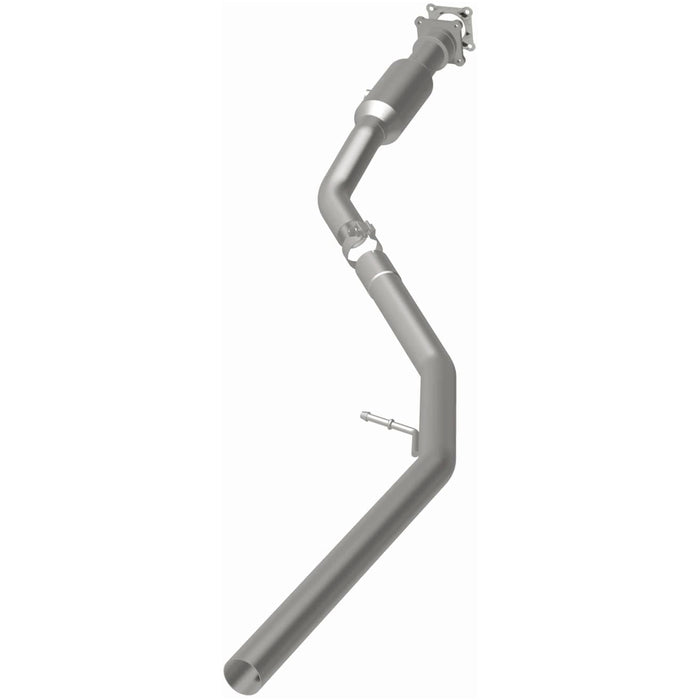

Catalytic Converter-Direct Fit MagnaFlow 49948

Part will fit your current fitment selection of None

Part will NOT fit your current fitment selection of None

Current Inventory

MississaugaUS WestUS East
0026
Customer Login

Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 49948. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2005-2007 Dodge Grand Caravan and 2005-2007 Chrysler Town & Country, this direct-fit catalytic converter also interchanges with OE parts 7B0 254 502 A and 7B0 254 502 . The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.

High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life

Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency

Simplifies installation with essential gaskets and hardware being included in the box

Durable 308 stainless steel MIG welds

Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability

Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last

Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation

OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration

OEM Grade Direct-Fit Catalytic Converter

Magnaflow OEM Grade Direct-Fit Catalytic Converter

Name Value
CARB Executive Order Number Not Applicable
Series OEM Grade
Substrate Material Ceramic
Universal Or Specific Fit Specific
Finish Stainless Steel
Hazardous Material No
Minimum Order Quantity 1
Body Material Stainless Steel
Country of Origin United States
Weight - Each (Gross Pounds) 22.0000
Height - Each (Inch) 11.1250
Length - Each (Inch) 46.0000
Width - Each (Inch) 13.7500
Associated Comment Not legal for sale or installation in California, Colorado or New York.
Meets or Exceeds Original Equipment Manufacture Specifications MagnaFlow OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 49948
Short Description OEM Grade
Inlet Type Bolt-On
Outlet Type Clamp-On
Oxygen Sensor Location Midbed
Air Tube Adaptable No
Body Shape Round
Body Type Spun
Outlet Quantity 1
Cut Type 77.125
Edge Type 4
Inlet Gasket Included Yes
Inlet Gasket Included 11
Style 4
Clamps Included Yes
Outlet Diameter (MM) 2.5
Inlet Port Quantity 2.5
Hangers Included Yes
Hangers Included Regular
Life Cycle Status Available to Order
Heat Shield Attached No
Sensor Port Count 1
Item Level GTIN 00841380054685
Air Tube Count 0
Quantity Per Application 1
Outlet Gasket Included No
Inlet Quantity 1
Tube Material Stainless Steel
Outlet Mounting Hardware Included No
Inlet Mounting Hardware Included No
Muffler Length Position Center (Inch) No
Muffler Body Height Position Front Right (Inch) No
Make ModelYearEngineType
CHRYSLER TOWN & COUNTRY07-05V6-3.3LCatalytic Converter
CHRYSLER TOWN & COUNTRY07-05V6-3.8LCatalytic Converter
DODGE GRAND CARAVAN07-05V6-3.3LCatalytic Converter
DODGE GRAND CARAVAN07-05V6-3.8LCatalytic Converter
